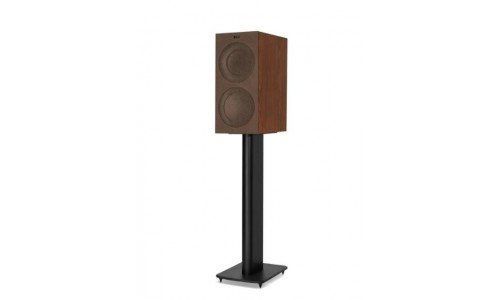

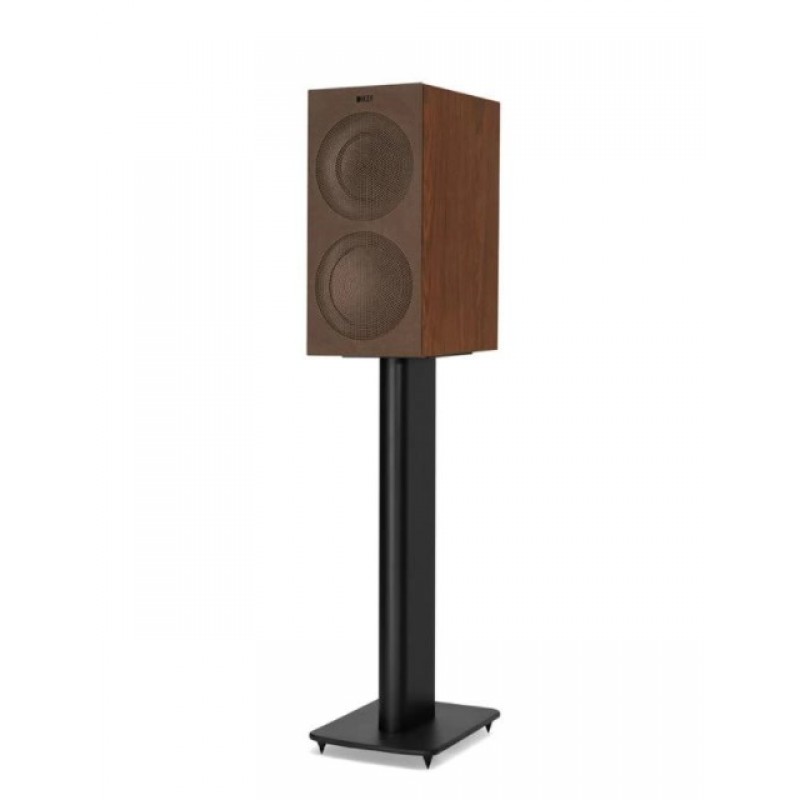

Three-way stand mount

The R3 stand mount shares the same drivers as the range topping R11 in a full range designe that defies expectations. A true 3-way speaker the R3 has a powerful 165mm (6.5 in.) bass driver and a 125mm (5 in.) midrange driver with 25mm (1 in.) aluminium dome tweeter Uni-Q array that pushes performance to new extremes.

Weight

13.5 kg (29.8 lbs.)

Dimension (H x W x D)

422.2 x 199.6 x 335.5 mm (16.6 x 7.9 x 13.2 in.) with terminal*

Dimension (H x W x D)

422 x 199.6 x 312 Cabinet only

Design

Three-way bass reflex

Frequency Range

38Hz-50kHz (-6dB)

Typical In-Room Bass Response

30Hz (-6dB)

Frequency Response

58Hz-28kHz (±3dB)

Harmonic Distortion

<0.3% 130Hz-20kHz (90dB, 1m)

Maximum Output

110dB

Amplifier Power

15-180W

Nominal Impedance

8Ohms (min.3.2Ohms)

Drive Units

Uni-Q Driver Array:

HF: 25mm (1in.) vented aluminium dome

MF: 125mm (5in.) aluminium cone

Bass Driver:

LF: 165mm (6.5in.) hybrid aluminium

Crossover Frequencies

400Hz, 2.9kHz

Finishes

Black Gloss / White Gloss / Walnut
