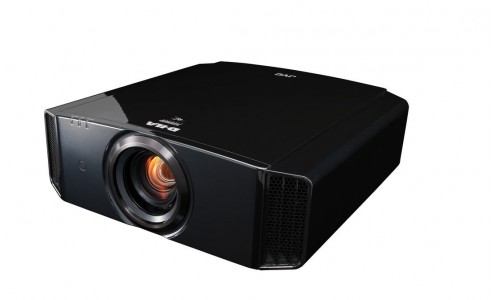

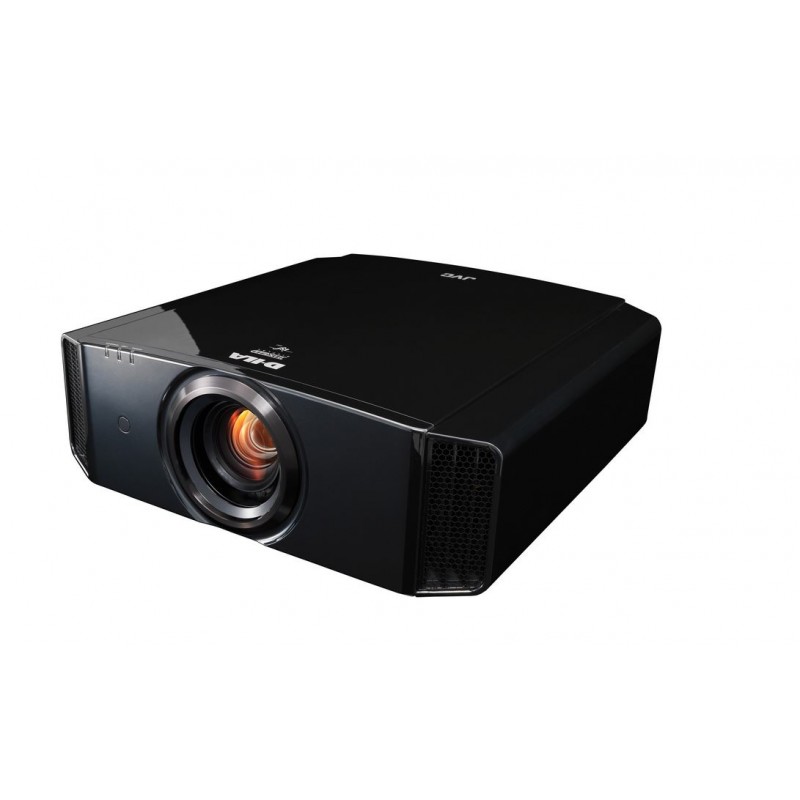

JVC D-ILA projector premium model that adopts high-grade parts realises 4K resolution, the industry highest native contrast ratio of 150,000:1 and the industry's highest dynamic contrast ratio of 1,500,000:1*1

Specifications

DLA-X900R DLA-X700R DLA-X500R

Device 0.7 inch Full HD D-ILA (1920 x 1080) x3

4K e-shift 3 Technology Yes

Resolution 3840 x 2160*1

Lens x2 Zoom & Focus: Motorised;f=21.4-42.8mm / F3.2-4

Lens Shift +/-80% Vertical and +/-34% Horizontal (motorised)

Projection Display Size 60 inch - 200 inch (diagonal)

Light Source Lamp NSH 230W (lamp life: approx. 4000 hours when the lamp is in Low mode)

Brightness 1300lm*2

Contrast Ratio Dynamic 1,500,000:1 1,200,000:1 600,000:1

Native 150,000:1 120,000:1 60,000:1

Input Terminal HDMI 2 (3D/Deep Colour/CEC compatible)

Output Terminals Trigger 1 (Mini jack , DC12V/100mA)

3D Sync 1 (Mini DIN 3pin)

Control Terminals RS-232C 1 (D-sub 9pin)

LAN (RJ-45) 1

Video Input Signal Format Digital 480p, 576p, 720p 60/50, 1080i 60/50,1080p 60/50/24,3840 x 2160p 60/50/30/25/24,4096 x 2160p*3 24

PC Input Signal Format HDMI VGA/SVGA/XGA/WXGA/FWXGA/WXGA+/SXGA/WXGA++/WSXGA+/WUXGA

3D Format Frame Packing 720p 60/50, 1080p 24

Side-by-Side (half) 720p 60/50, 1080p 60/50/24, 1080i 60/50

Top & Bottom 720p 60/50, 1080p 24

Power Consumption 360 W (Normal standby: 7 W, Eco-mode Standby: 0.4 W)

Fan Noise 21 dB (When the lamp is in Low mode)

Power Requirement AC 100-240 V, 50/60 Hz

Dimensions (W x H x D) 455 mm x 179 mm x 472 mm

Weight (net) 15.0 kg 14.7 kg
