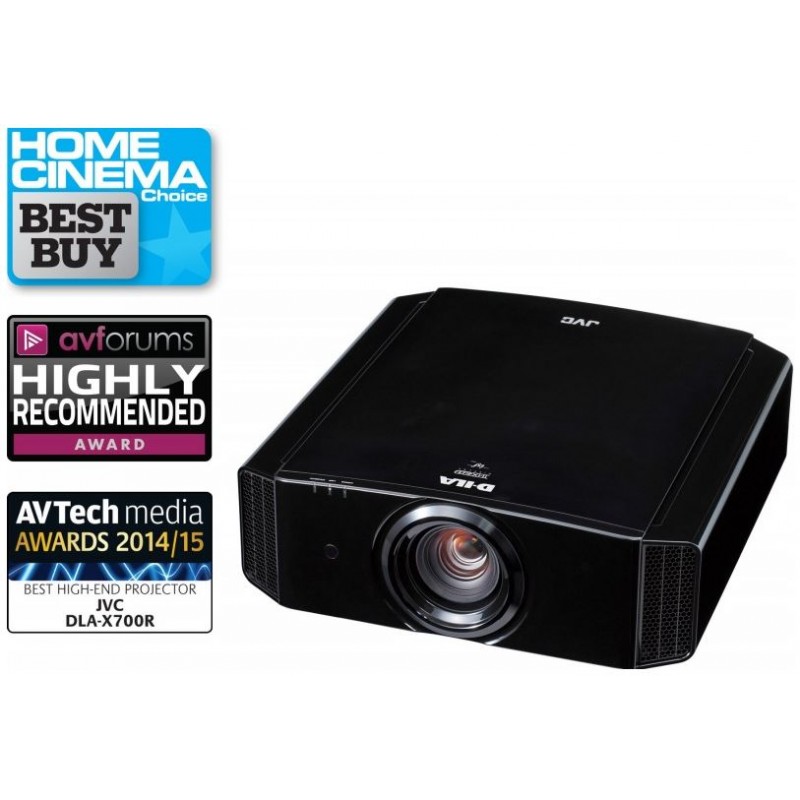

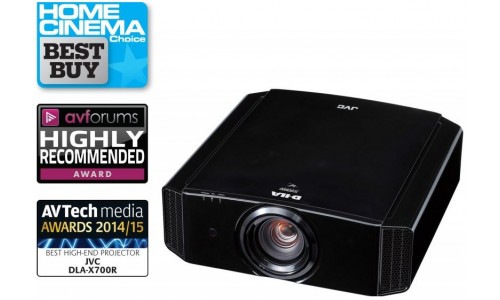

JVC’s D-ILA 4K e-shift projector** with high native contrast ratio of 120,000:1*, and maximum Dynamic contrast ratio of 1,200,000:1 achieved by adopting optical engine with new wire grid and the latest 6th generation original D-ILA device. Additionally, e-shift 3 Technology with enhanced Multiple Pixel Control image processor and analyser achieves a high-definition 4K image optimal for a variety of scenes.

** 3840 x 2160 [4K e-shift3 (not native 4K)].

Features

4K Projection (3840 x 2160 pixels) achieved with optical engine featuring e-shift 3 Technology with Multiple Pixel Control image processor and MPC analyser

Dynamic contrast ratio of 1,200,000:1 (max.) and Native contrast ratio of 120,000:1 achieved with original D-ILA device and an optical engine equippped with new wire grid

Brightness of 1300 lumens

Improved 3D viewing with reduced crosstalk made possible by D-ILA's original Frame Addressing driver technology

An array of 3D picture adjustment functions: 2D-3D conversion, Crosstalk Cancelling, Disparity Adjustment, and Depth Adjustment

Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter

Real Colour Imaging Technology allows combined use of picture modes and dedicated colour profiles in 23 different ways to enjoy images.

Xenon lamp colour temperature

Colour Management System with 7-axis Matrix

Clear Motion Drive 3 improves pictures with rapid movement for both 4K and 3D images

Picture Adjustment function allows user to precisely correct colour deviation in 1/16-pixel increments; also segments the screen into 121 points for individual adjustment. Two customized settings can be stored in the memory.

Environmental Setting automatically adjusts images to best match the environment

Screen Adjustment Mode: 106 modes (Up to 255 modes)

Intelligent Lens Aperture

Lens Memory function (10 memories)

Digital Keystone in 2D mode (vertical direction)

THX 3D Display Certification and ISF C3 mode

Projector can easily be controlled from a smartphone or tablet

New 6th generation 0.7" Full HD D-ILA devices x 3

4K resolution (3840 x 2160) achieved with e-shift 3 Technology including Multiple Pixel Control image processor

4K signal input (50p/60p compatible with 4:2:0 colour base)

Resolution: 3840 x 2160 (in 2D); 1920 x 1080 (in 3D)

NSH 230W

Connectors: HDMI x 2 (3D, Deep Colour, CEC compatible), RS-232C x 1, LAN x 1, Trigger x 1, 3D x 1

Specifications

DLA-X700RBE - D-ILA Projector with 3D Viewing


Device 0.7-inch Full HD D-ILA (1920 x 1080) x3

e-shift Technology Yes (e-shift 3 Technology)

Resolution 3840 x 2160 (2D)[1]

Lens

Zoom 2X zoom & focus, motorised

f 21.4 -- 42.8mm

F 3.2 -- 4

Lens shift function +/-80% vertical & +/-34% horizontal, motorised

Light source lamp NSH 230W

Brightness 1,300lm[2]

Lamp life Approx. 4000 hours in Low mode

Contrast Ratio Native: 120,000:1, Dynamic: 1,200,000:1

Video input signals 480p/576p,720p 60/50,1080i 60/50,1080p 60/50/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 24[3]

PC input signal

Digital VGA/ SVGA/ XGA/ WXGA/ FWXGA/ WXGA+/ SXGA/ WXGA++/ WSXGA+/ WUXGA

Video input terminals (back panel)

HDMI 2 (3D/Deep Colour/CEC compatible)

Control terminals

RS232C 1 (D-sub 9-pin)

Trigger 1 (mini jack, DC12V/100mA)

LAN (RJ45) 1

Output terminals (back panel)

3D sync 1 (Mini DIN 3-pin)

General

Noise level 21dB (when the lamp is in Low mode)

Power requirement AC 100-240V, 50/60Hz

Power consumption 360W[4]

Dimensions: W x H x D, mm 455 x 179 x 472

Weight, kg 15.0

3D

3D format Frame packing: 720p 60/50, 1080p 24; Side-by-side (half): 720p 60/50, 1080p 60/50/24, 1080i 60/50; Top & bottom: 720p 60/50, 1080p/24

[1] 1920 x 1080 (in 3D mode); 3840 x 2160 [4K e-shift 3 (not native 4K)]

[2] Measurement, measuring conditions, and method of notation comply with ISO 21118.

[3] When the video input signal is at 4096 x 2160p, data above 3,840 is not displayed equally on the left and right.

[4] 1. During standby: 0.4W; During networked standby: 4.8W (HDMI 1) / 4.8W (HDMI 2) / 4.3W (LAN) / 4.3W (RS232C) 2. During networked standby when all wired network ports are connected: 5.5W 3. The default time period for switching into networked standby or standby: 20 minutes
